1" - 210 Bar 261E HYPERCOLD 1001560

Du skal være logget ind for at kunne lave bestillinger

Slangestørrelse: 1"
Arbejdstryk (Bar): 210
Bukkeradius (mm): 150

Model/Varenr.: 1001560

Lagerstatus: 59 Stk på lager

Beskrivelse

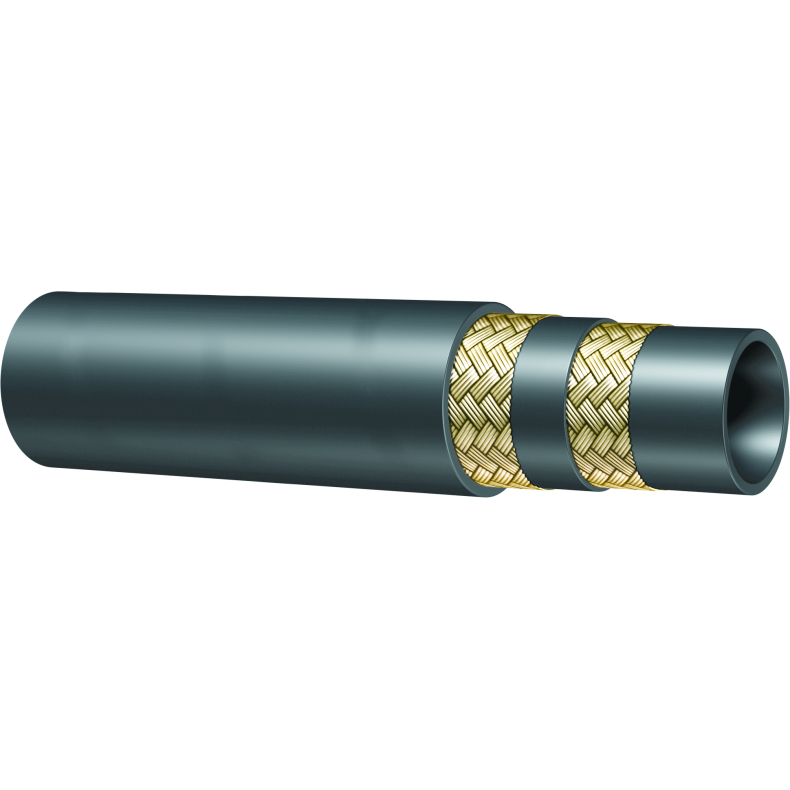

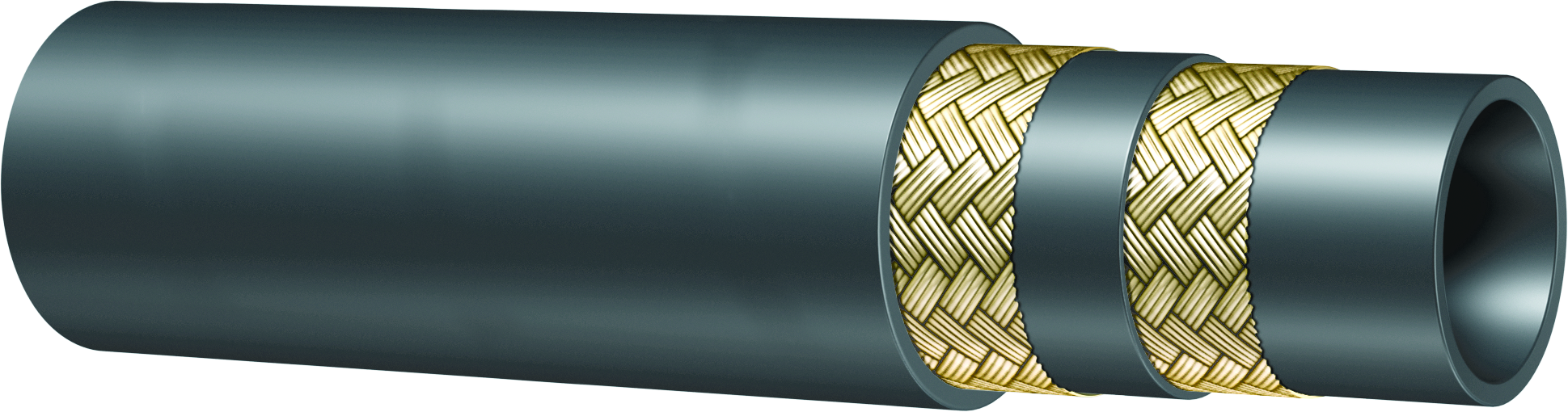

HYPERCOLD - 261E - 1" - 210
1001560
Tube: oil resistant ultra low temperature synthetic rubber.
Reinforcement: two high tensile steel braids.

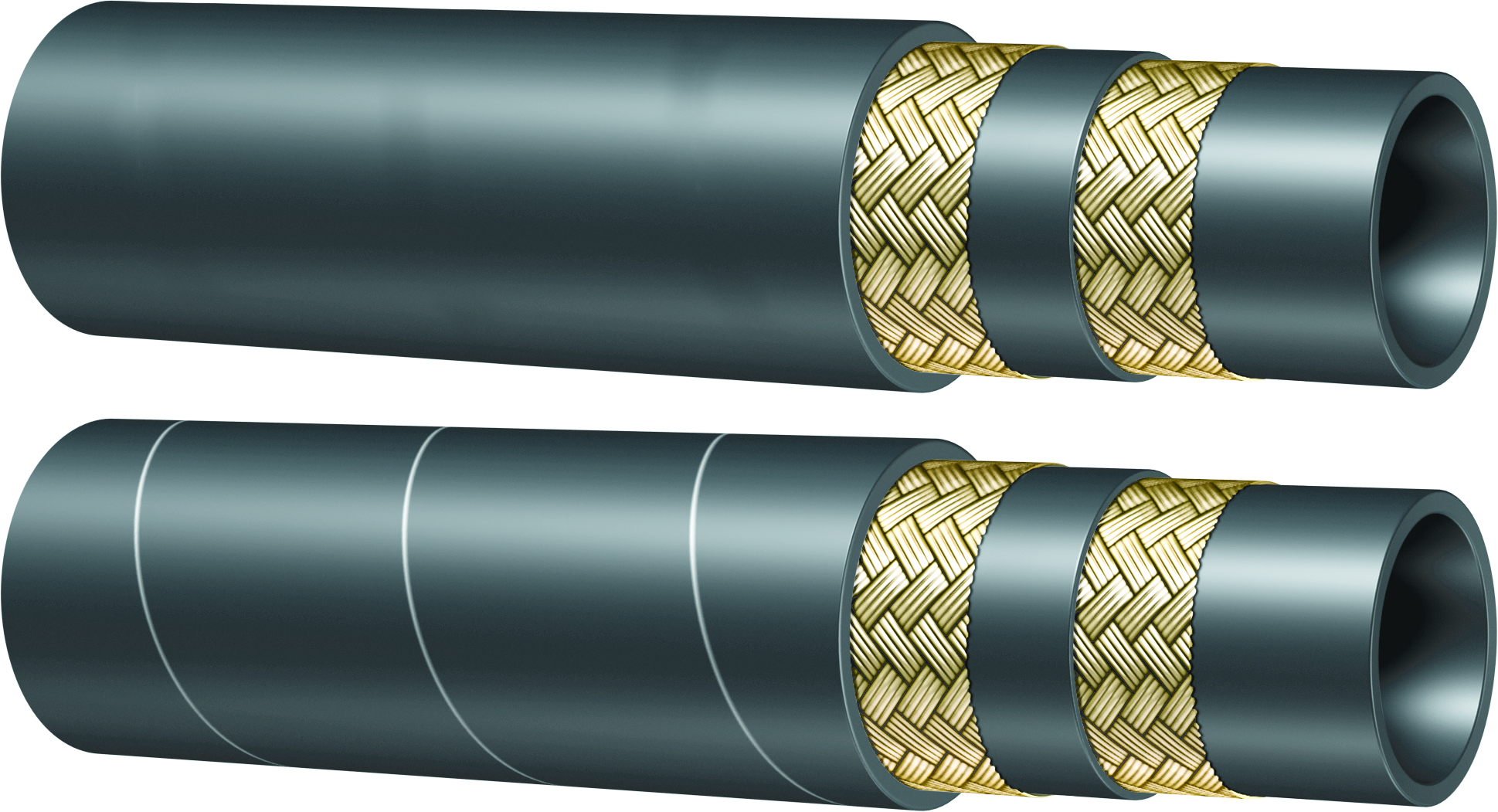

Cover: smooth up to 1", wrapped over 1". Oil, water, ozone and ultra low temperature resistant synthetic rubber.
Application: hydraulic system with petroleum or water/glycol based fluids, fuel, lubricating oils.
Specially designed for ultra low temperature applications.
Temperature: -55 °C +100 °C (-67 °F +212 °F) air max T = +70 °C (+160 °F)
Length: random
DH SCAN crimp short code: 261E

ID (Dash): 16
ID (mm): 25
ID (in): 1"
OD (mm): 35,6
WP (Bar): 210
WP (psi): 3000
BP (Bar): 840
BP (psi): 12000
BR (mm): 150
Weight (kg/m): 1,22

DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): 261E
