Olietrykslange - Extra Fleksibilitet - FLEXOR R4 634 - 3/4" - 21 Bar - 30.5m 1001272

Du skal være logget ind for at kunne lave bestillinger

Indvendig diameter (mm): 19,0
Slangestørrelse: 3/4"
Materiale: SBR
Medie: Olie

Model/Varenr.: 1001272

Lagerstatus: 25 Meter på lager

Beskrivelse

OIL RETURN LINES - FLEXOR R4 634 - 3/4" - 2,1
1001272

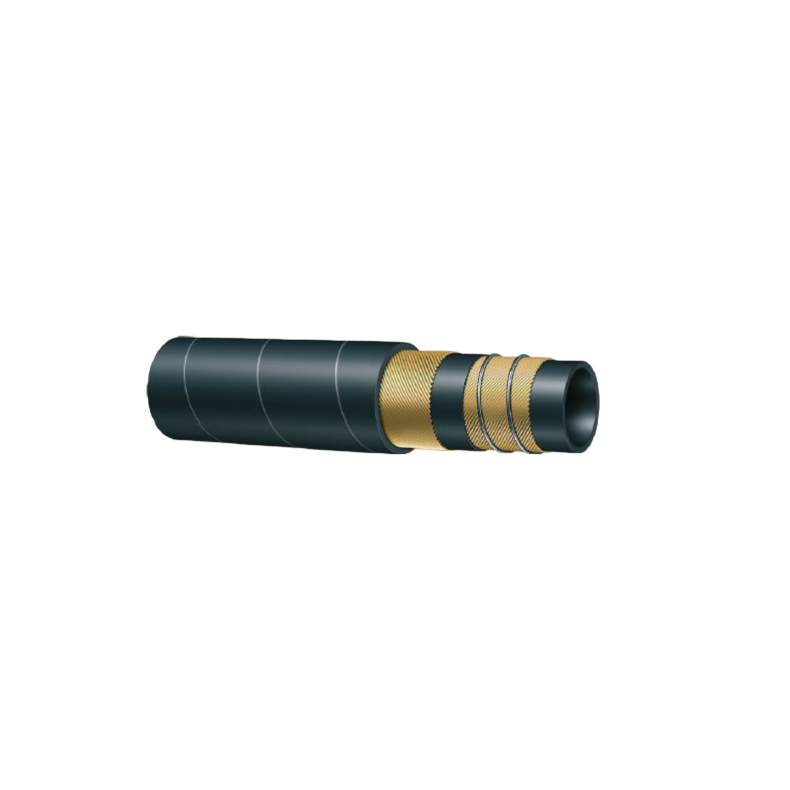

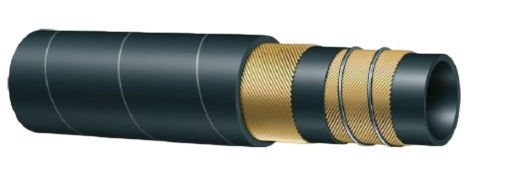

FLEXOR R4 634 Extra flexible
SAE 100 R4
Tube: oil resistant synthetic rubber.
Reinforcement: high tensile textile cords with embedded steel helix wire.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: fuel, oil and hydraulic fluids with 50% max aromatic content suction and delivery.
Specially designed for hydraulic oil return lines requiring tight bend radius.
Temperature: -40 °C +100 °C (-40 °F +212 °F)

ID (Dash): 12
ID (mm): 19,0
ID (in): 3/4"
OD (mm): 30,0
WP (Mpa): 2,1
WP (psi): 300
BP (Mpa): 8,4
BP (psi): 1200
BR (mm): 38
Weight (kg/m): 0,610
