Olietrykslange - Extra Fleksibilitet - FLEXOR R4 634 - 1 1/4" - 14 Bar - 30.5mbr>1001275

1001275">

Du skal være logget ind for at kunne lave bestillinger

Indvendig diameter (mm): 32,0
Slangestørrelse: 1 1/4"
Materiale: SBR
Medie: Olie

Model/Varenr.: 1001275

Lagerstatus: 9 Meter på lager

Beskrivelse

OIL RETURN LINES - FLEXOR R4 634 - 1 1/4" - 1,4
1001275

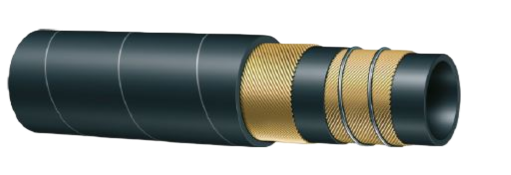

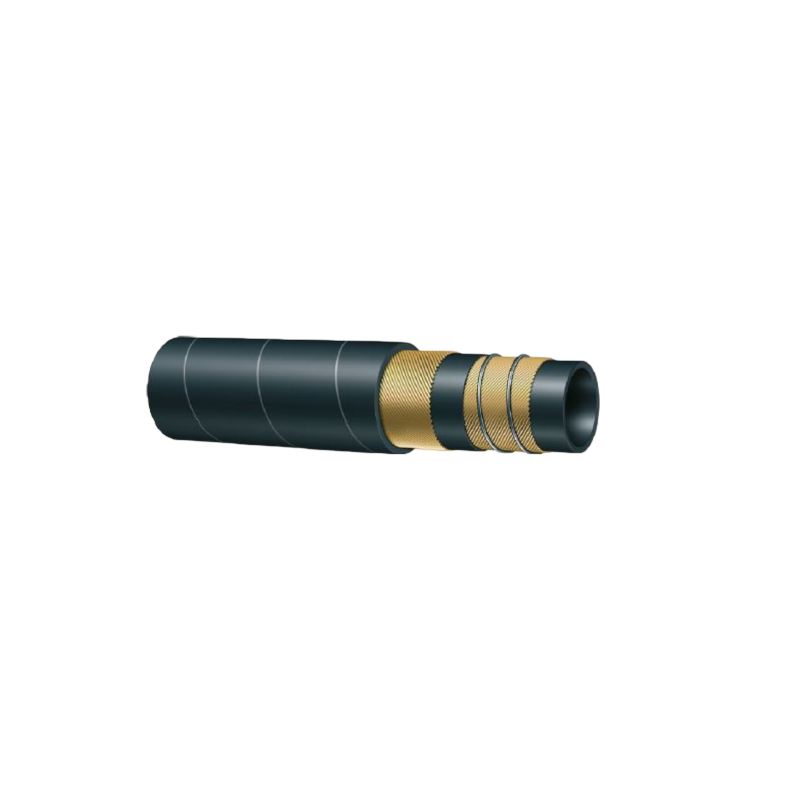

FLEXOR R4 634 Extra flexible
SAE 100 R4
Tube: oil resistant synthetic rubber.
Reinforcement: high tensile textile cords with embedded steel helix wire.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: fuel, oil and hydraulic fluids with 50% max aromatic content suction and delivery.
Specially designed for hydraulic oil return lines requiring tight bend radius.
Temperature: -40 °C +100 °C (-40 °F +212 °F)

ID (Dash): 20
ID (mm): 32,0
ID (in): 1 1/4"
OD (mm): 43,0
WP (Mpa): 1,4
WP (psi): 200
BP (Mpa): 5,6
BP (psi): 800
BR (mm): 64
Weight (kg/m): 0,930
