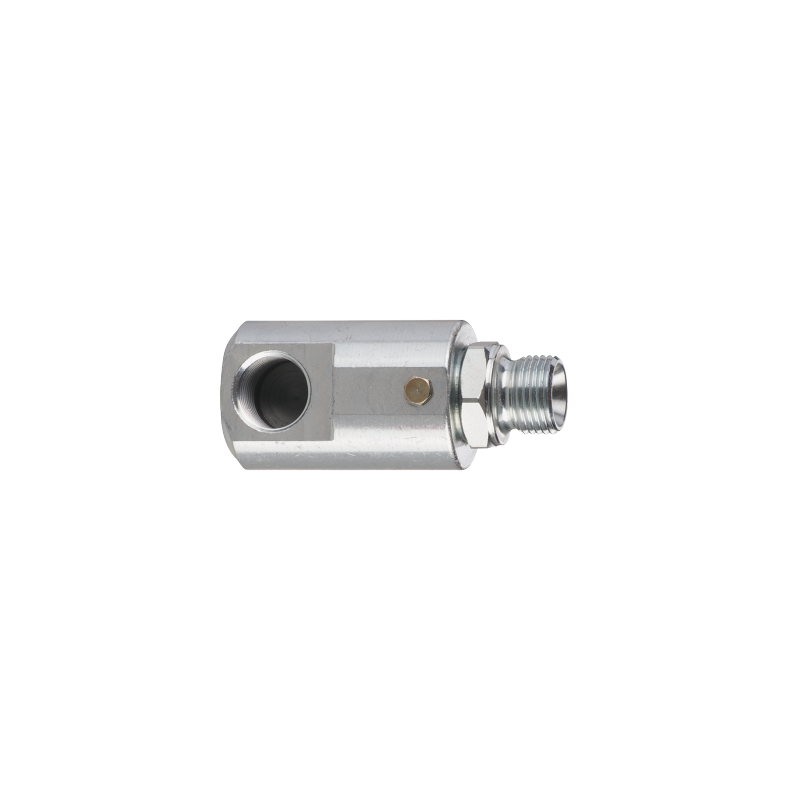

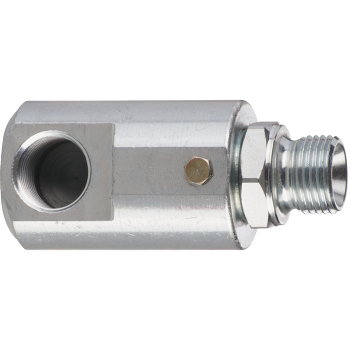

Swivel connector - BSP60 - 3/8-19" - 400 1221177

Du skal være logget ind for at kunne lave bestillinger

Configuration: 90
Thread 1: BSP60
Thread 2: BSP60
F1: 3/8-19"
F2: 3/8-19"
CH (mm): 34
L1 (mm): 77
WP (Bar): 400

Model/Varenr.: 1221177

Lagerstatus: 2 Stk på lager

Beskrivelse

Swivel connector - BSP60 - 3/8-19" - 400
1221177
SWCDH-BSPP
SWIVEL CONNECTOR BSP
Solid Female - Solid Male
Temperature: -40 °C + 100 °C
Viscosity Range: 10 to 200 cSt
Sealing: NBR
Material: Galvanized steel
Notes: For different conditions of use and cavities, contact the sales department

Configuration: 90
Thread 1: BSP60
ID (Dash): 6
F1: 3/8-19"
Thread 2: BSP60
F2: 3/8-19"
CH (mm): 34
L1 (mm): 77
WP (bar): 400
:
