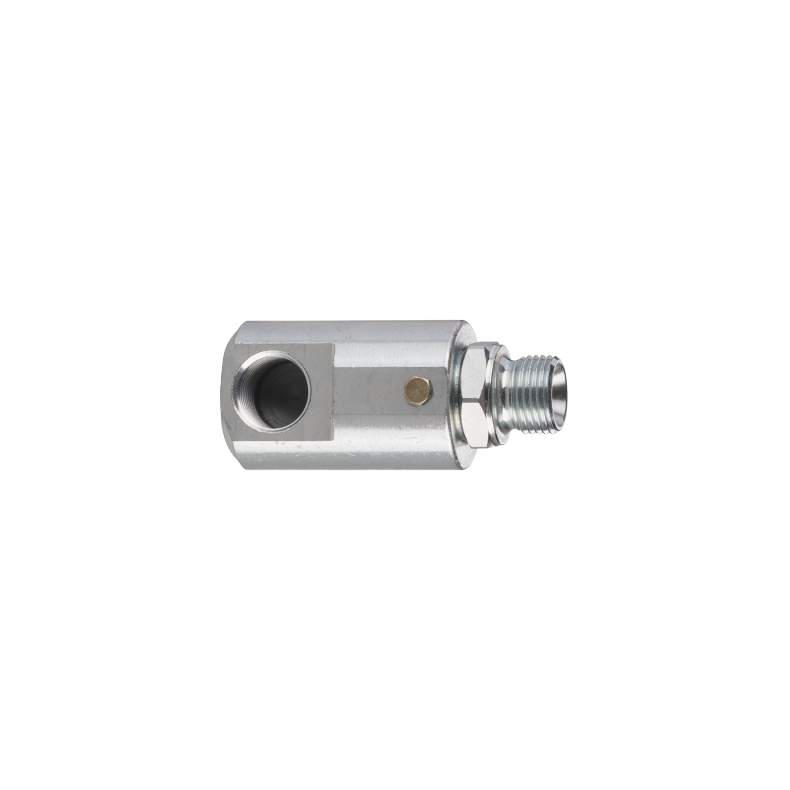

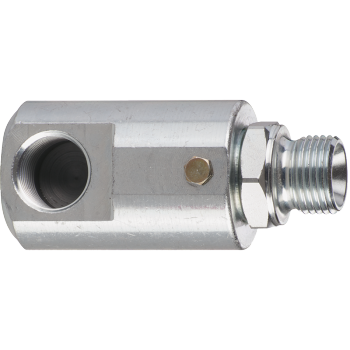

Swivel connector - BSP60 - 1/2-14" - 360 1221178

Du skal være logget ind for at kunne lave bestillinger

Configuration: 90
Thread 1: BSP60
Thread 2: BSP60
F1: 1/2-14"
F2: 1/2-14"
CH (mm): 38
L1 (mm): 86
WP (Bar): 360

Model/Varenr.: 1221178

Lagerstatus: 2 Stk på lager

Beskrivelse

Swivel connector - BSP60 - 1/2-14" - 360
1221178
SWCDH-BSPP
SWIVEL CONNECTOR BSP
Solid Female - Solid Male
Temperature: -40 °C + 100 °C
Viscosity Range: 10 to 200 cSt
Sealing: NBR
Material: Galvanized steel
Notes: For different conditions of use and cavities, contact the sales department

Configuration: 90
Thread 1: BSP60
ID (Dash): 8
F1: 1/2-14"
Thread 2: BSP60
F2: 1/2-14"
CH (mm): 38
L1 (mm): 86
WP (bar): 360
:
