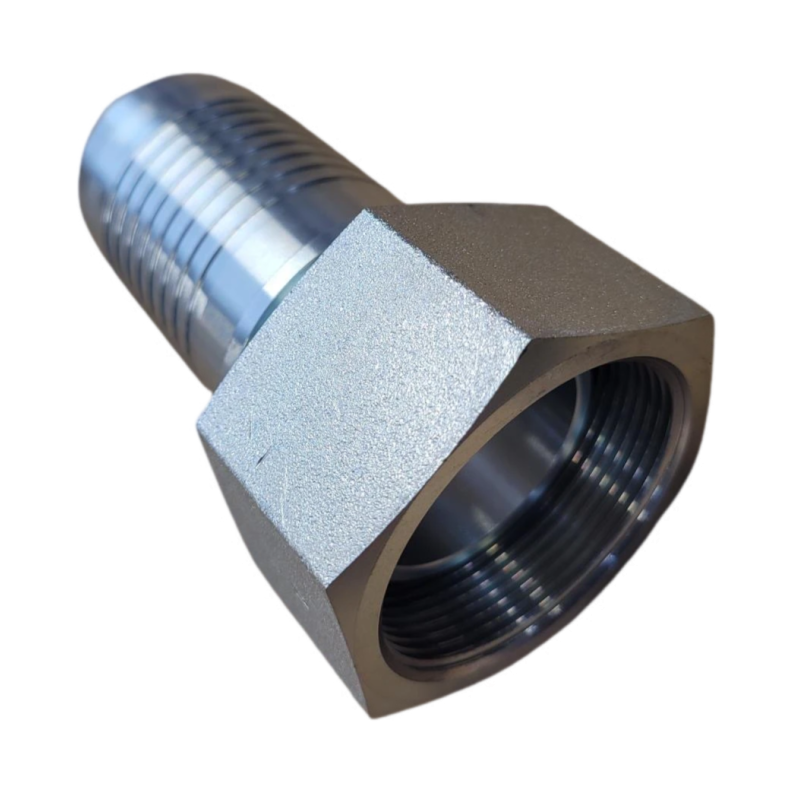

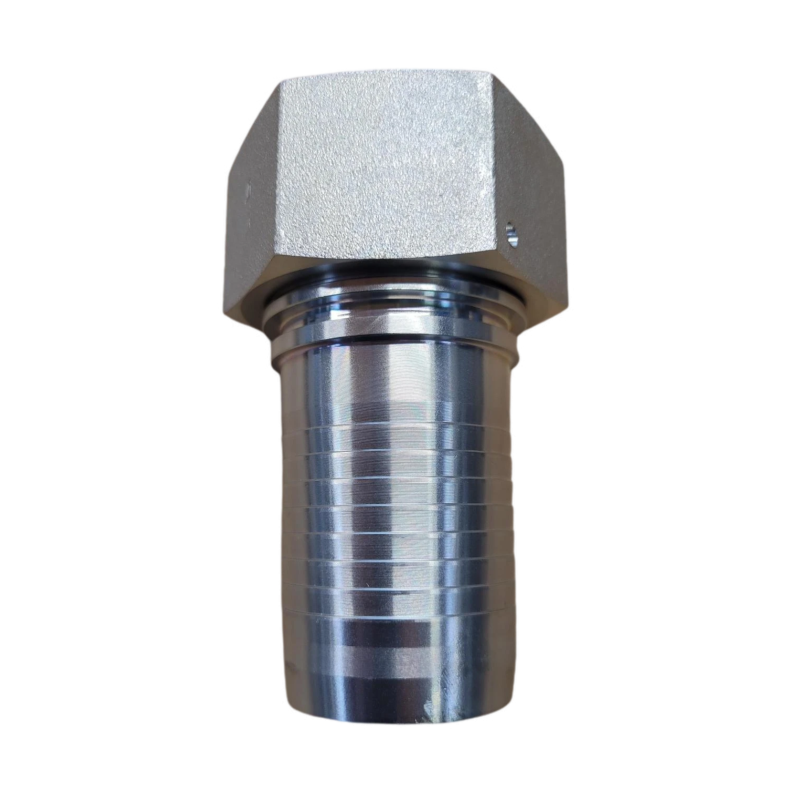

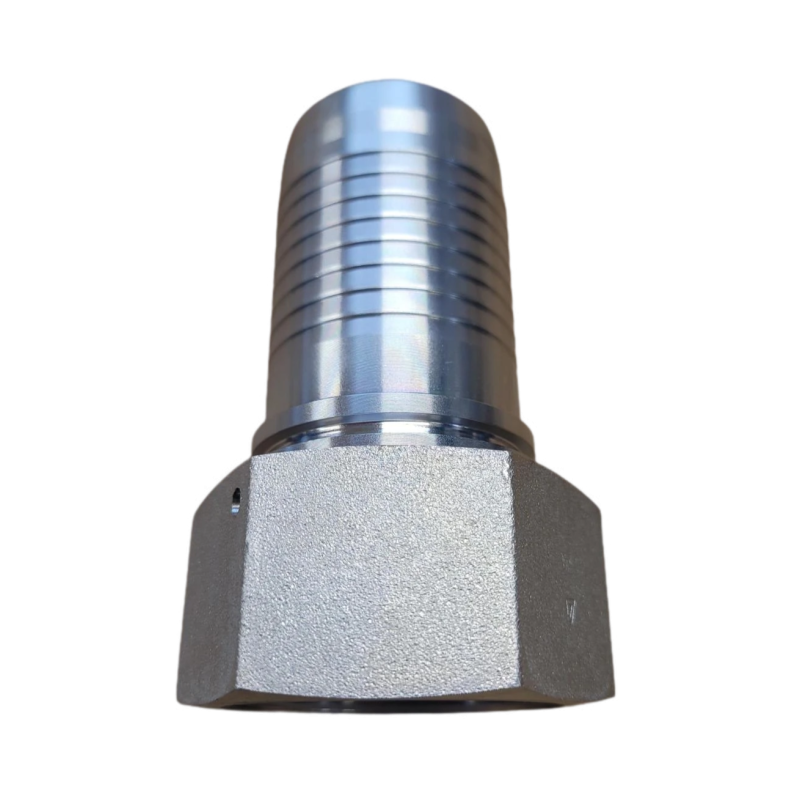

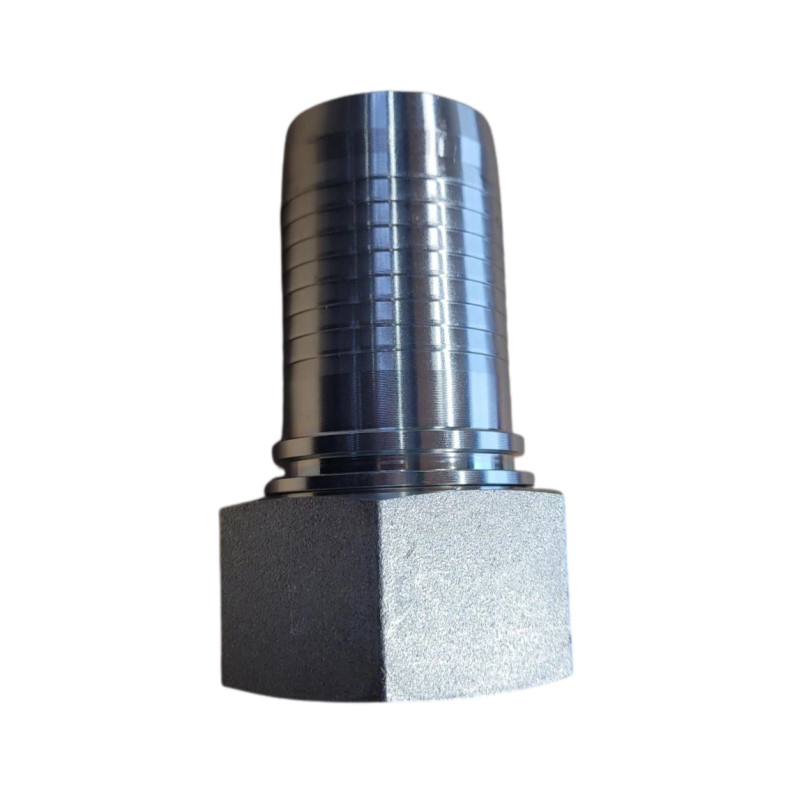

2" BSP indv. gev. til 2" slange 1202014

Du skal være logget ind for at kunne lave bestillinger

Gevind størrelse: 2"
Slangestørrelse: 2"
Gevind type: BSP
Udforming: 0° Lige

Model/Varenr.: 1202014

Lagerstatus: 4 stk. på lager

ATTRIBUTE	VALUE

Family Code	H1220812-323200
Unit of measure	PCE
Weight	1.03 (KGM)
Channel	001
Family	H1220813

Connection of Hyd Component	Swivel Female
Cut-off (mm)	34.0
Head1/Head2 Dimens.	-3232
Dash Size of Hose	32
Group of Hydraulic Fittings	AG Standard Fittings
Nom ID-Hose (inch)	2"
Nom ID-Hose (mm)	51.0
Nut Hexagon (mm)	70.0
Type of Nut	Thrust wire nut
OD-Hyd Tube (mm)	2"
Termination of Hyd Component	BSP60
O-ring Presence on Termination	Oring Std
Thread Dash Size	32
Thread Size	2-11
